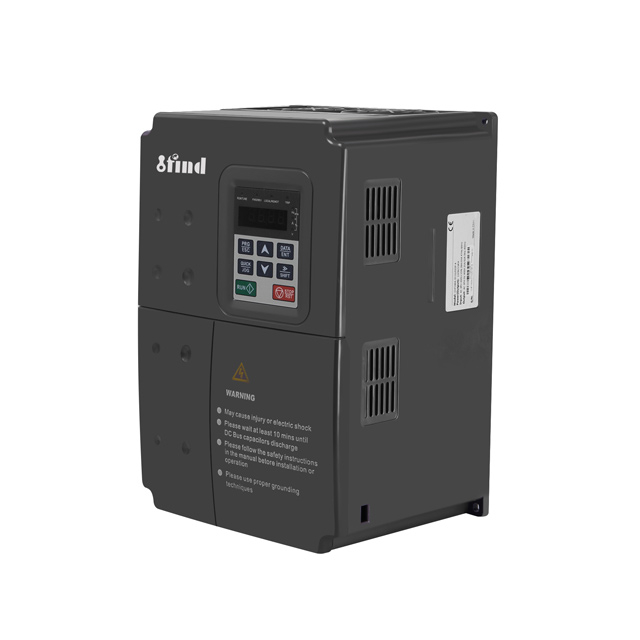

This V/F vector vfd AC drive 220V 380V inverter have the widely application,a high-performance inverter with vector frequency conversion technology. With high-performance current vector technology, it can easily drive induction motors.USE V/F AND VECTOR CONTROL MODEL, SUITABLE FOR WATER PUMP ,FAN,AIR COMPRESSOR,TEXTILE MACHINE MORE INDUSTRY APPLICATION
GOOD QUALITY AND EASY OPERATION WITH THE BEST PRICE ,RECEIVED GOOD COMMENTS FROM END USER ALL OVER THE WORLD
1.Three control modes: without PG vector (SVC), V/F control, and torque control;
2.Starting torque: without PG vector control: 0.5Hz/150% (SVC);
3.18.5kW-90kW inverter built-in DC reactor to improve input power factor and increaseoverall efficiency and stability;
4.Internal brake unit with every specification 0.75-15kW, so that the braking resister can be connected directlyfor a quick stop;
5.16-steps simple PLC, multi-speed control, and PID control
6.Supporting multi-frequency installation methods: digital setup, analog quantity setup, PID setup, and communication setup;
7.Supports starting and stopping DC brake;
8.The input and output terminals may be freely programmed, so users may combine a variety of operating modes as needed;
9.Equipped with jump frequency control which prevents mechanical resonance and makes the system more stable and reliable;
10.Equipped with instantaneous power failure non-outage capability;
11.Equipped with sleep-wake delay installation capability;
12.Equipped with over-torque detection;chf 100a invt inverter
13.Variety of maximum frequency setting source options;
14.Equipped with a bidirectional shift key , which enables users to use the shift key to view real-time parameters;
15.Rotation speed tracking re-start function: allowing rotating machinery to be started smoothly and without any shocks.
The drawing of V/F vector vfd AC drive 220V 380V inverter
IFIND V/F vector vfd AC drive 220V 380V inverter products high-performance, high-quality and high-power density design, which has significantly improved in ease of use, maintainability, environmental protection, installation space and design standards, and can further optimize the user experience.Integrated with sensor less flux vector control, standard V/F control, 220V or 380V, Rapid dynamic response to quick acceleration/deceleration and rapid braking, Outstanding speed regulation to load fluctuation, Perfect protection such as over temperature, under voltage, over voltage, over load, over current, short circuit protection, Automatic current limiting, voltage limiting to prevent frequent over current/voltage faults in running
