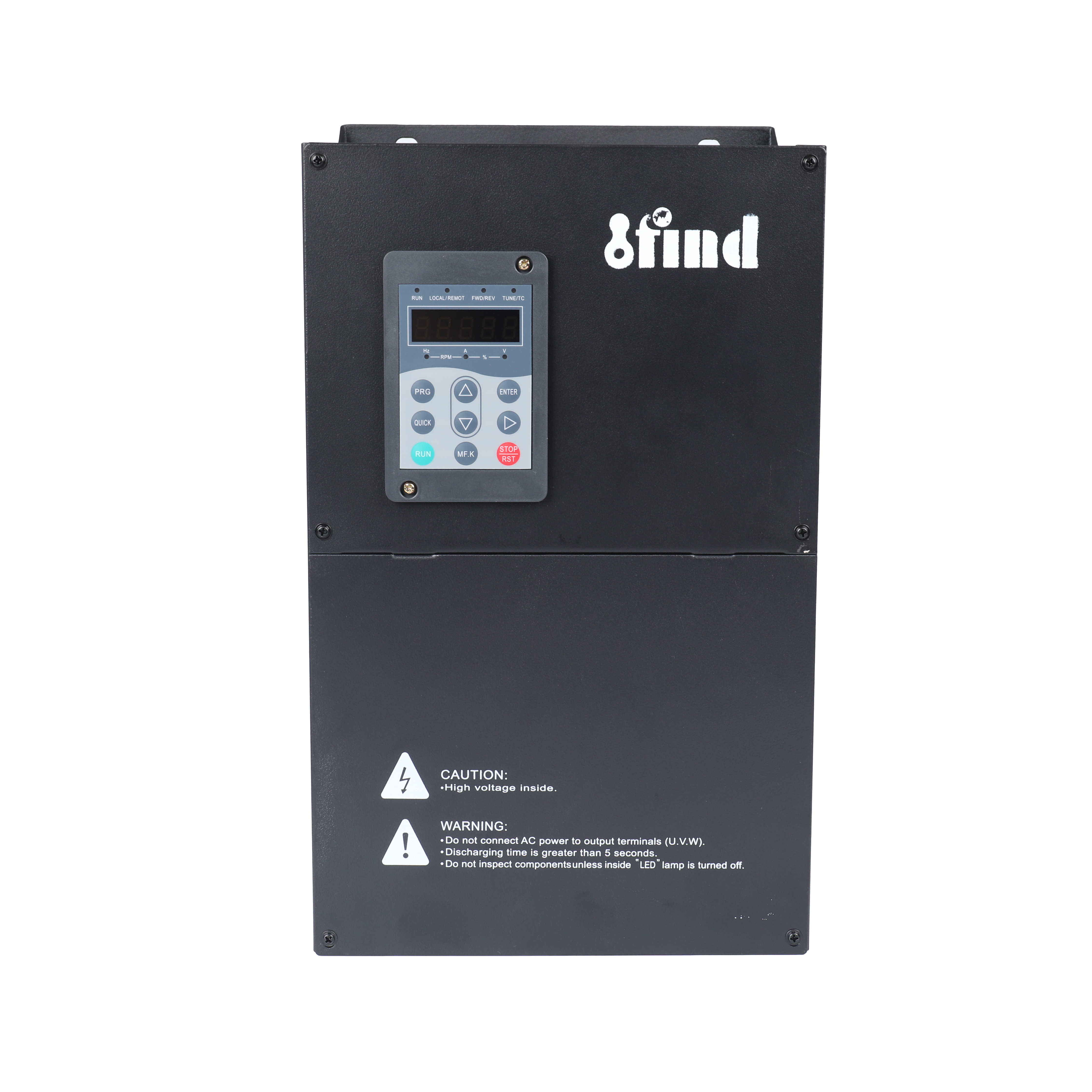

This High-performance vector crane inverter is based on a DSP control system, inside PLC,adopts vector control technology, and is combined with various protection methods. It can be used for asynchronous motors to improve their driving performance. It integrates position, speed, and torque control, supports customer secondary development, meets personalized and industry needs, is flexible in application, and has stable performance.Variable frequency inverter applicable occasions:Fans, Pumps, 3-Phase Motors, Machine Tool, Textile, Mining, Chemical, Plastic machinery, Metallurgy, Oil, Woodworking, Pharmaceutical, Ceramics, Paper, Lifting,Printing And Packaging, Air Compressors ,Agricultural Irrigation, etc. GOOD QUALITY AND EASY OPERATION WITH THE BEST PRICE ,RECEIVED GOOD COMMENTS FROM END USER ALL OVER THE WORLD
Main functions of High-performance vector crane inverter
1.Three control modes: without PG vector (SVC), V/F control, and torque control;
2.Starting torque: without PG vector control: 0.5Hz/150% (SVC);
3.18.5kW-90kW inverter built-in DC reactor to improve input power factor and increaseoverall efficiency and stability;
4.Internal brake unit with every specification 0.75-15kW, so that the braking resister can be connected directlyfor a quick stop;
5.16-steps simple PLC, multi-speed control, and PID control
6.Supporting multi-frequency installation methods: digital setup, analog quantity setup, PID setup, and communication setup;
7.Supports starting and stopping DC brake;
8.The input and output terminals may be freely programmed, so users may combine a variety of operating modes as needed;
9.Equipped with jump frequency control which prevents mechanical resonance and makes the system more stable and reliable;
10.Equipped with instantaneous power failure non-outage capability;
11.Equipped with sleep-wake delay installation capability;
12.Equipped with over-torque detection;chf 100a invt inverter.
13.Variety of maximum frequency setting source options;
14.Equipped with a bidirectional shift key , which enables users to use the shift key to view real-time parameters;
15.Rotation speed tracking re-start function: allowing rotating machinery to be started smoothly and without any shocks.
16.Overload protection ,over current protection
Main advantage:
1. Vector control
2. 0.4-37KW standard built-in brake unit
3. Support common DC bus scheme
4. Support multiple encoding options
5. Integrateed position control
6. Integrated speed control
7. Integrated torque control
8. Closed loop vector control 0HZ 200% torque out
9. Standard RS485 communication control
The drawing of High-performance vector crane inverter
IFIND High-performance vector crane inverter products high-performance, high-quality and high-power density design, which has significantly improved in ease of use, maintainability, environmental protection, installation space and design standards,as the international high-end inverter but also further strengthens the reliability of the productand the adaptability of the environment. Its customized and industrialized design can better meetthe needs of various transmission applications as well.and can further optimize the user experience.Integrated with sensor less flux vector control, standard V/F control, 220V or 380V, Rapid dynamic response to quick acceleration/deceleration and rapid braking, Outstanding speed regulation to load fluctuation, Perfect protection such as over temperature, under voltage, over voltage, over load, over current, short circuit protection, Automatic current limiting, voltage limiting to prevent frequent over current/voltage faults in running.With its high performance, high reliability and high adaptability, this inverter meets the demanding requirements of industrial automation and is the ideal choice for increasing production efficiency and ensuring equipment safety.
